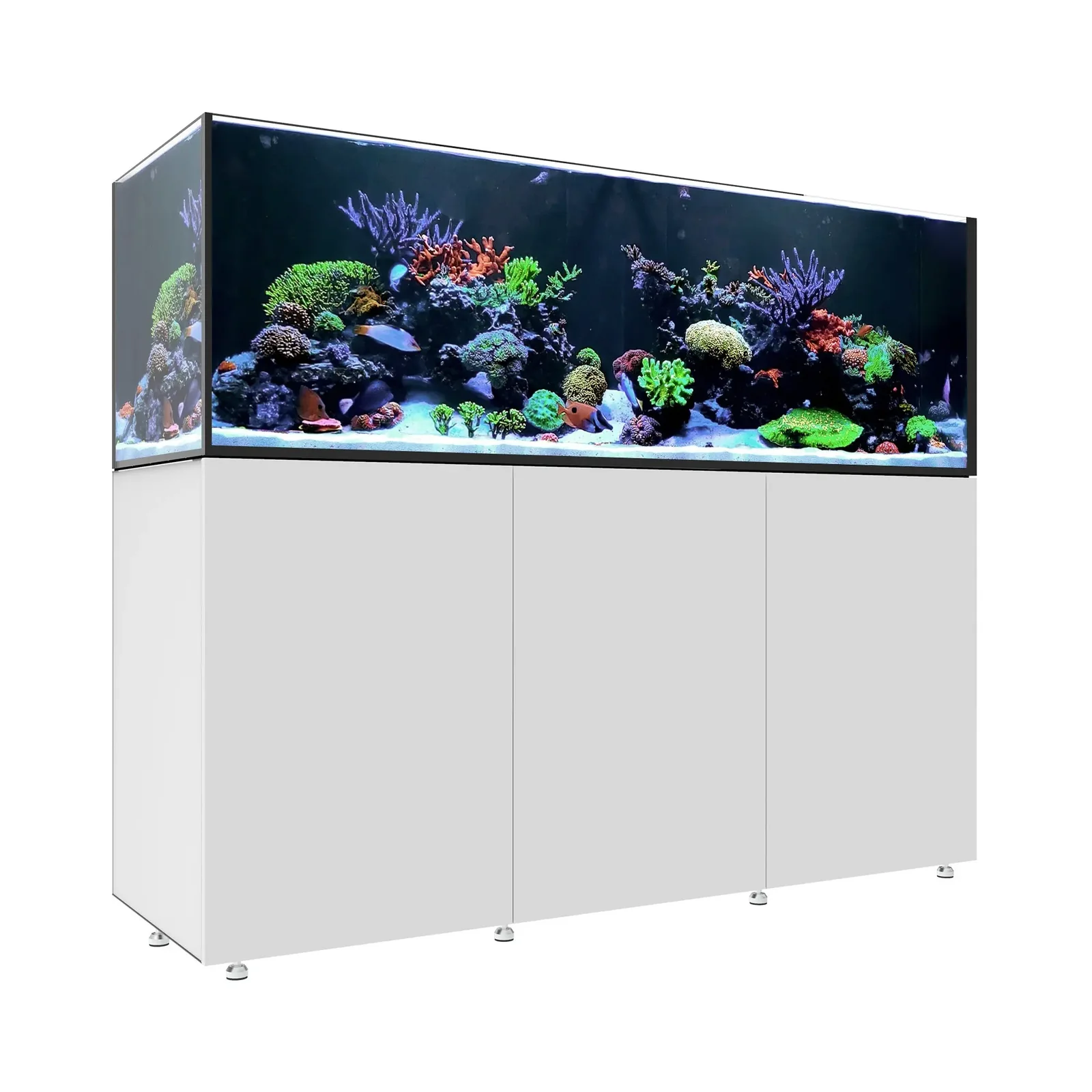

Waterbox INFINIA Reef 230.6
AU$6,490.00 inc GST

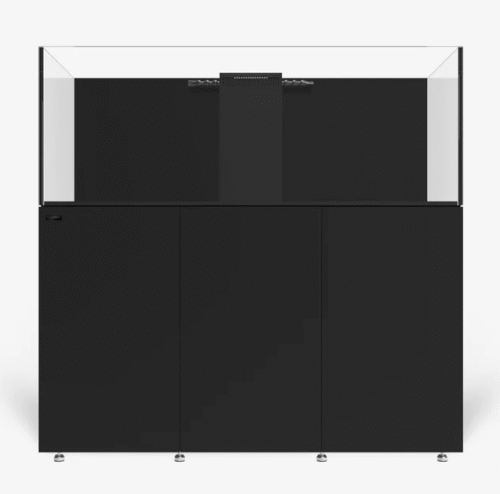

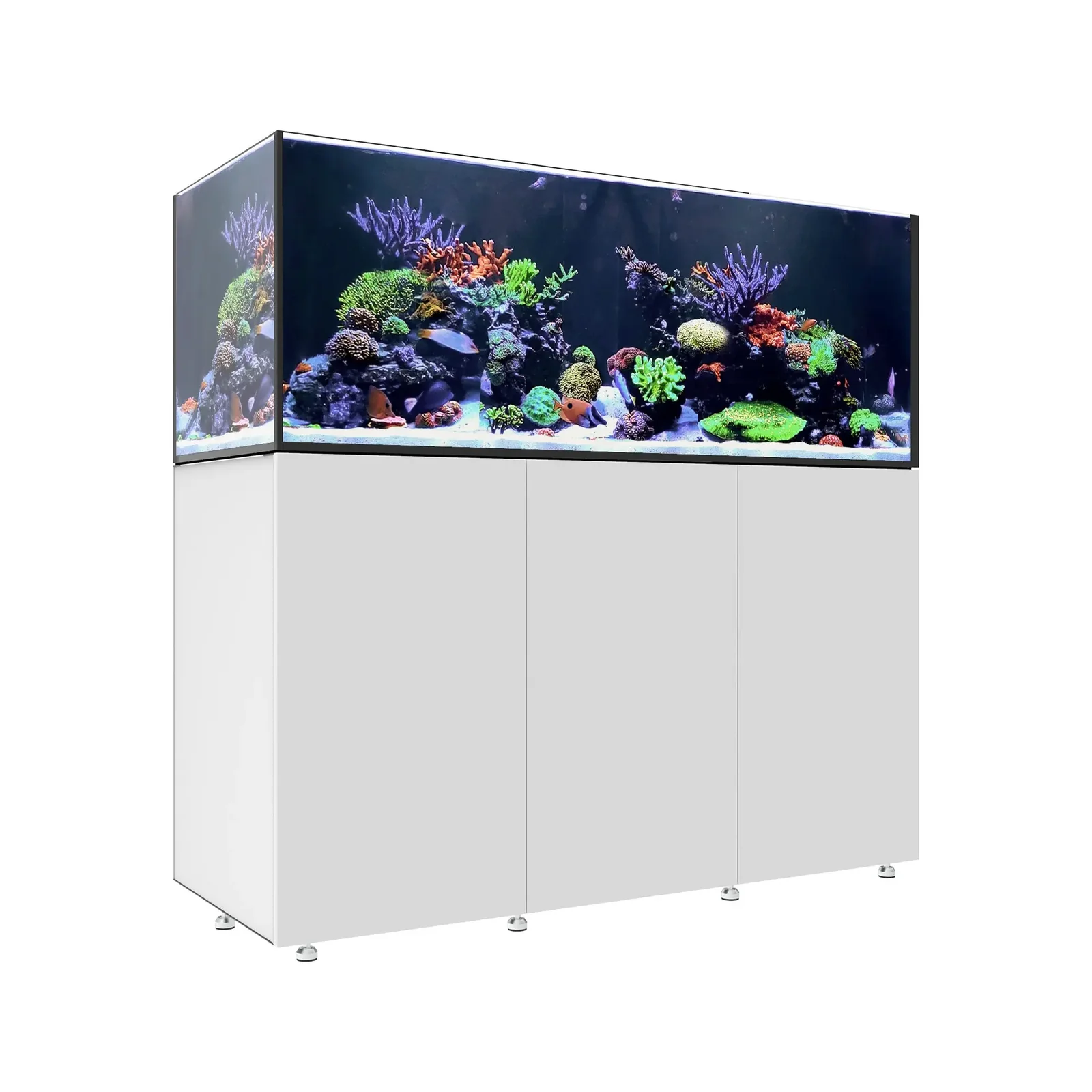

Waterbox INFINIA Reef 190.5
AU$4,890.00 inc GST
Think of this as the all-around performer. With added height, you’ll have more swimming room for fish like wrasses, anthias, and tangs, while still having plenty of space for corals. It’s a balanced system for reefers who want the best of both worlds—room for a thriving fish community and a vibrant reefscape.
***Not all items stocked… please call 0397836083 for stock and delivery quotes***
Easy Assembly with no gluing required
Quick Connect Fittings assemble quick and easy with no gluing required.
–
Return Line includes dual adjustable nozzles for maximum turnover.
–
Manifold provides access for additional reactors and equipment.
–
Precision Overflow Valve allows for precise adjustments ensuring
quiet operation.
–
Check Valve ensures back syphon does not overflow the sump.
Check valve only on INFINIA REEF models.
–
The INFINIA® sump system features an integrated filter sock chamber
which can easily adopt the most popular filter rollers.
INFINIA REEF

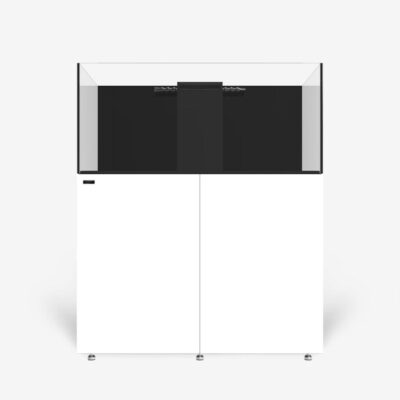

| Product Model | INFINIA REEF 150.4 |
INFINIA REEF 190.5 |
INFINIA REEF 230.6 |
|
|---|---|---|---|---|
| System | Height with Cabinet | 1,477mm/58.2″ | 1,502mm/59.1″ | 1,527mm/60.1″ |
| Total Volume with ATO | 573 L/151.3 gals | 730 L/192.8 gals | 875 L/231.2 gals | |
| Total System Weight | 191 kg/421 lbs | 259 kg/571 lbs | 330 kg/728 lbs | |
| Display Tank |
Tank Dimensions | 1,223 x 643 x 550mm | 1,536 x 643 x 575mm | 1,836 x 643 x 600mm |
| 48.2″ × 25.3″ × 21.7″ | 60.5″ × 25.3″ × 22.6″ | 72.3″ × 25.3″ × 23.6″ | ||
| Glass Thickness | 12mm (1/2″) | 15mm (3/5″) | 19mm (3/4″) | |
| Aquarium Volume | 399 L/105.5 gals | 517 L/136.6 gals | 632 L/167 gals | |
| Aquarium Weight | 98 kg/216 lbs | 146 kg/322 lbs | 211 kg/465 lbs | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||

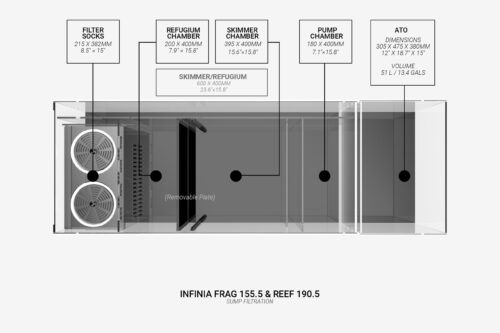

| In-cabinet Sump |
Dimensions | 838 x 475 x 380mm | 965 x 475 x 380mm | 1,143 x 475 x 380mm |
| 33″ × 18.7″ × 15″ | 38″ × 18.7″ × 15″ | 45″ × 18.7″ × 15″ | ||
| Sump Volume | 140 L/37.1 gals | 162 L/42.8 gals | 192 L/50.8 gals | |
| Sump Weight | 40 kg/88 lbs | 45 kg/99 lbs | 48 kg/106 lbs | |
| Glass Thickness | 8mm (5/16″) | |||
| Refugium Chamber (Max Int. Dimensions) |
180 x 400mm | 250 x 400mm | 300 x 400mm | |
| 7.1″ × 15.8″ | 9.8″ × 15.8″ | 11.8″ × 15.8″ | ||
| Refugium Chamber (Min Int. Dimensions) |
140 x 400mm | 200 x 400mm | 230 x 400mm | |
| 5.5″ × 15.8″ | 7.9″ × 15.8″ | 9.1″ × 15.8″ | ||
| Skimmer Chamber (Int. DIM, w/o Refugium) |
416 x 400mm | 528 x 400mm | 676 x 400mm | |
| 16.4″ × 15.8″ | 20.8″ × 15.8″ | 26.6″ × 15.8″ | ||
| Skimmer Chamber (Int. DIM, with Min Refugium) |
271 x 400mm | 323 x 400mm | 441 x 400mm | |
| 10.7″ × 15.8″ | 12.7″ × 15.8″ | 17.4″ × 15.8″ | ||
| Skimmer Chamber (Int. DIM, with Max Refugium) |
231 x 400mm | 273 x 400mm | 371 x 400mm | |
| 9.1″ × 15.8″ | 10.7″ × 15.8″ | 14.6″ × 15.8″ | ||
| Pump Chamber (Int. Dimensions) |
135x 400mm | 150 x 400mm | 180 x 400mm | |
| 5.3″ × 15.8″ | 5.9″ × 15.8″ | 7.1″ × 15.8″ | ||
| ATO Tank |
ATO Dimensions | 203 x 475 x 380mm | 305 x 475 x 380mm | |
| 8″ × 18.7″ × 15″ | 12″ × 18.7″ × 15″ | |||
| ATO Volume | 33 L/8.7 gals | 51 L/13.4 gals | ||
| ATO Weight | 9 kg/20 lbs | 11 kg/24 lbs | 11 kg/24 lbs | |
| Glass Thickness | 6mm (1/4″) | 6mm (1/4″) | ||
| Plumbing | Main Drain | DN32 (ID: 32mm OD: 40mm) | ||
| Emergency Overflow | DN32 (ID: 32mm OD: 40mm) | |||
| Pump Return | DN25 (ID: 25mm OD: 32mm) | |||
| Return Hose | lD: 25mm OD: 31mm | |||
| Nozzle(s) (Thread Size) | 2 x M25 (25mm) | |||
| Manifold Kit | Manifold 15 (Single outlet) | |||
| Filtration | Filter Socks | 2 x 180mm/7″ FELT | ||
| Filter Sock Silencers | 2 x 180mm/7″ | |||
| Interchangable with Roller Filter | YES | |||
| Marine- Shield Cabinet |
Cabinet Model | MSII 4825 | MSII 6025 | MSII 7225 |
| Cabinet Dimensions | 1,223 x 643 x 927mm | 1,536 x 643 x 927mm | 1,836 x 643 x 927mm | |
| 48.2″ × 25.3″ × 36.5″ | 60.5″ × 25.3″ × 36.5″ | 72.3″ × 25.3″ × 36.5″ | ||
| Sump Compartment (Int. Dimensions) |
1182 x 549 x 849mm | 1,495 x 541 x 849mm | 1,795 x 541 x 849mm | |
| 46.5″ × 21.6″ × 33.4″ | 58.9″ × 21.3″ × 33.4″ | 70.7″ × 21.3″ × 33.4″ | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door Panels | Double-sided 18mm PET laminated Wood Oriented Strand Board | |||
| Side Panels | Aluminum Composite | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 5mm PVC Board | |||
| Cabinet Weight | 44 kg/97 lbs | 57 kg/126 lbs | 60 kg/132 lbs | |
| Cabinet Color | WHT-White, BLK-Black | |||
* All volumes are calculated from nett tank dimension less the glass thickness.
** Water height and volume may vary dependent on user configuration and system application.
*** All specifications are subject to changes without prior notice.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Color |
Black ,White |
