Waterbox INFINIA Frag 125.4

AU$3,875.00 inc GST

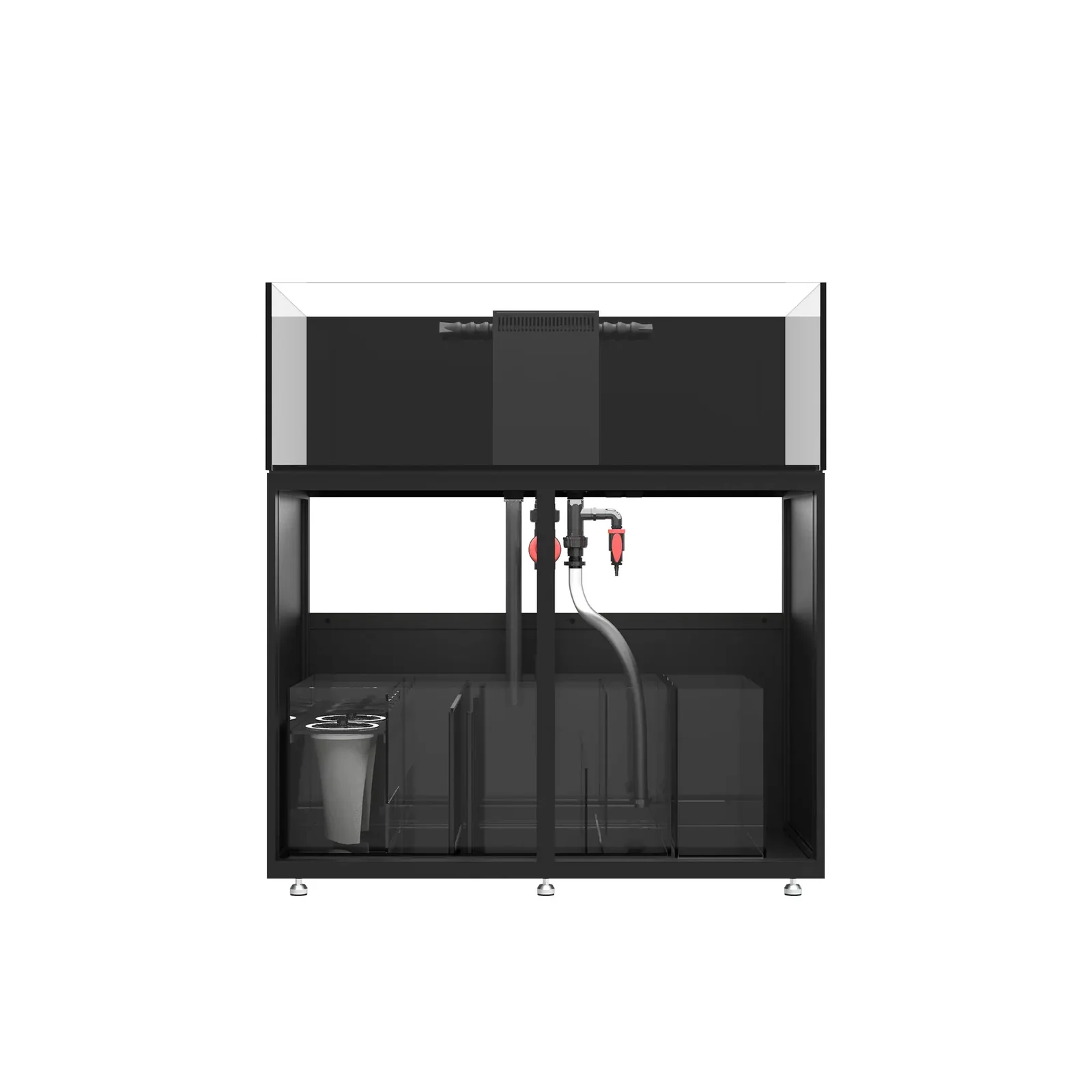

The INFINIA Frag 125.4 Rimless Aquarium is designed to offer an uninterrupted, crystal-clear view of your aquatic life

SKU: N/A Category: Tags: ,

The INFINIA Frag 125.4 Rimless Aquarium is designed to offer an uninterrupted, crystal-clear view of your aquatic life. Without the traditional bulk of rimmed tanks, this aquarium provides a sleek and modern look that fits well in any setting. The rimless edges not only enhance aesthetics but also allow easier cleaning and maintenance. Crafted with precision silicone bonding, this tank guarantees durability while showcasing your corals and fish with maximum clarity and minimal visual distractions.

***Not all items stocked… please call 0397836083 for stock and delivery quotes***



Product Model INFINIA
FRAG 125.4		 INFINIA
FRAG 155.5		 INFINIA
FRAG 175.6
System Height with Cabinet 1,337mm/52.6″ 1,337mm/52.6″ 1,337mm/52.6″
Total Volume with ATO 469 L/123.8 gals 585 L/154.6 gals 690 L/182.2 gals
Total System Weight 175 kg/386 lbs 211 kg/465 lbs 232 kg/511 lbs
Display
Tank		 Tank Dimensions 1,223 x 643 x 410mm 1,536 x 643 x 410mm 1,836 x 643 x 410mm
48.2″ × 25.3″ × 16.1″ 60.5″ × 25.3″ × 16.1″ 72.3″ × 25.3″ × 16.1″
Glass Thickness 12mm (1/2″) 12mm (1/2″) 12mm (1/2″)
Aquarium Volume 295 L/78 gals 372 L/98.4 gals 446 L/117.9 gals
Aquarium Weight 82 kg/181 lbs 98 kg/216 lbs 113 kg/249 lbs
Glass Material Ultra-clear Low Iron glass (front and sides)
Transmittance 91%
In-cabinet

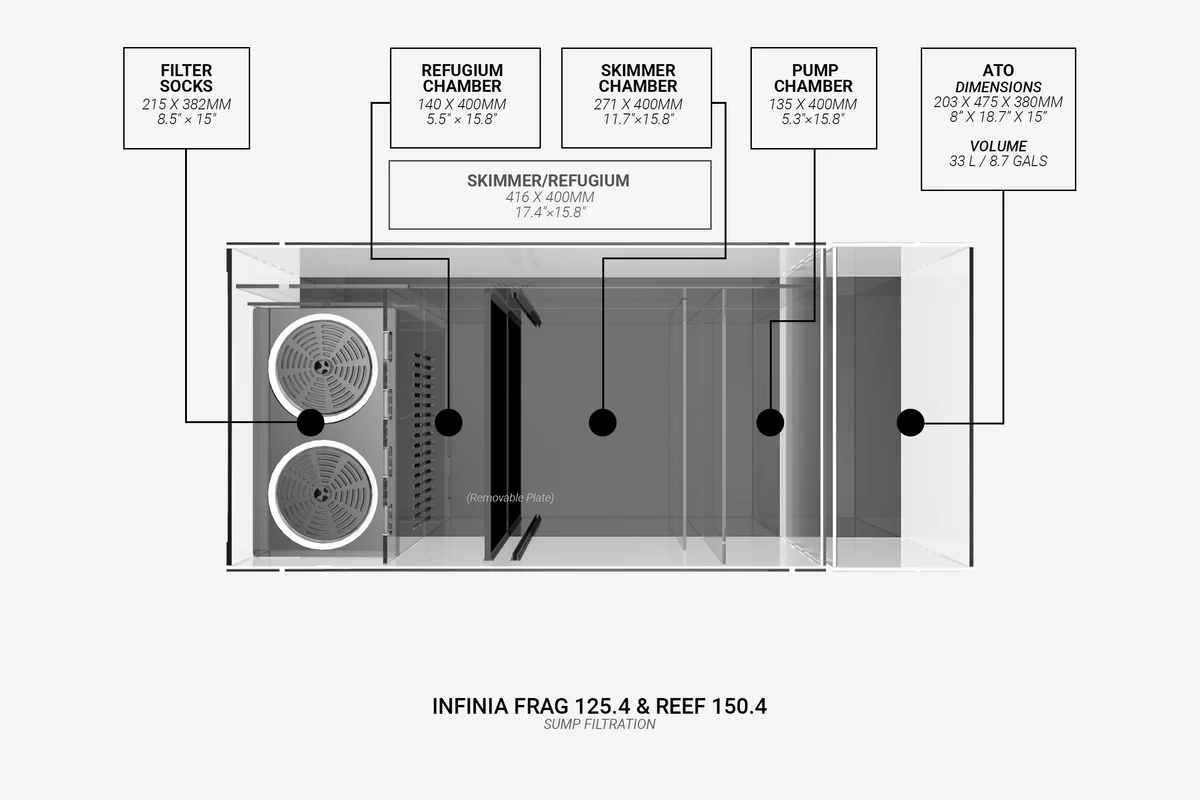

Sump		 Dimensions 838 x 475 x 380mm 965 x 475 x 380mm 1,143 x 475 x 380mm
33″ × 18.7″ × 15″ 38″ × 18.7″ × 15″ 45″ × 18.7″ × 15″
Sump Volume 140 L/37.1 gals 162 L/42.8 gals 192 L/50.8 gals
Sump Weight  40 kg/88 lbs  45 kg/99 lbs  48 kg/106 lbs
Glass Thickness 8mm (5/16″)
Refugium Chamber
(Max Int. Dimensions)		 180 x 400mm 250 x 400mm 300 x 400mm
7.1″ × 15.8″ 9.8″ × 15.8″ 11.8″ × 15.8″
Refugium Chamber
(Min Int. Dimensions)		 140 x 400mm 200 x 400mm 230 x 400mm
5.5″ × 15.8″ 7.9″ × 15.8″ 9.1″ × 15.8″
Skimmer Chamber
(Int. DIM, w/o Refugium)		 416 x 400mm 528 x 400mm 676 x 400mm
16.4″ × 15.8″ 20.8″ × 15.8″ 26.6″ × 15.8″
Skimmer Chamber
(Int. DIM, with Min Refugium)		 271 x 400mm 323 x 400mm 441 x 400mm
10.7″ × 15.8″ 12.7″ × 15.8″ 17.4″ × 15.8″
Skimmer Chamber
(Int. DIM, with Max Refugium)		 231 x 400mm 273 x 400mm 371 x 400mm
9.1″ × 15.8″ 10.7″ × 15.8″ 14.6″ × 15.8″
Pump Chamber
(Int. Dimensions)		 135x 400mm 150 x 400mm 180 x 400mm
5.3″ × 15.8″ 5.9″ × 15.8″ 7.1″ × 15.8″
ATO
Tank		 ATO Dimensions 203 x 475 x 380mm 305 x 475 x 380mm
8″ × 18.7″ × 15″ 12″ × 18.7″ × 15″
ATO Volume 33 L/8.7 gals 51 L/13.4 gals
ATO Weight 9 kg/20 lbs 11 kg/24 lbs 11 kg/24 lbs
Glass Thickness 6mm (1/4″) 6mm (1/4″)
Plumbing Main Drain DN32 (ID: 32mm OD: 40mm)
Emergency Overflow DN32 (ID: 32mm OD: 40mm)
Pump Return DN25 (ID: 25mm OD: 32mm)
Return Hose lD: 25mm OD: 31mm
Nozzle(s) (Thread Size) 2 x M25 (25mm)
Manifold Kit Manifold 15 (Single outlet)
Filtration Filter Socks 2 x 180mm/7″ FELT
Filter Sock Silencers 2 x 180mm/7″
Interchangable with Roller Filter YES
Marine-
Shield
Cabinet		 Cabinet Model MSII 4825 MSII 6025 MSII 7225
Cabinet Dimensions 1,223 x 643 x 927mm 1,536 x 643 x 927mm 1,836 x 643 x 927mm
48.2″ × 25.3″ × 36.5″ 60.5″ × 25.3″ × 36.5″ 72.3″ × 25.3″ × 36.5″
Sump Compartment
(Int. Dimensions)		 1182 x 549 x 849mm 1,495 x 541 x 849mm 1,795 x 541 x 849mm
46.5″ × 21.6″ × 33.4″ 58.9″ × 21.3″ × 33.4″ 70.7″ × 21.3″ × 33.4″
Cabinet Framework Anti-corrosion Aluminum Alloy
Door Panels Double-sided 18mm PET laminated Wood Oriented Strand Board
Side Panels Aluminum Composite
Bottom Panels 10mm PVC Board
Back Panels 5mm PVC Board
Cabinet Weight 44 kg/97 lbs 57 kg/126 lbs 60 kg/132 lbs
Cabinet Color WHT-White, BLK-Black

* All volumes are calculated from net tank dimension less glass thickness at maximum water level.
** Water height and volume may vary dependent on user configuration and system application.
*** All specifications are subject to changes without prior notice.
