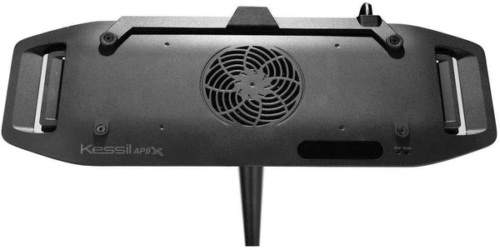

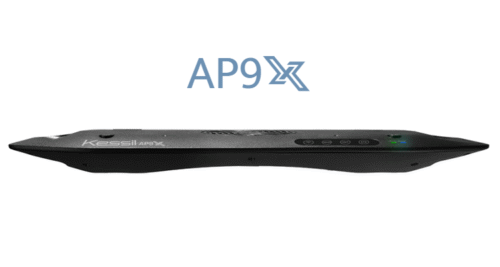

Kessil – AP9X

Coverage

Redesigned optics provide an even light distribution that blankets your aquarium with up to 48” of coverage. This uniform coverage minimizes hotspots and creates an effect similar to that of a metal halide / T5 combo.





Spectrum

In addition to Kessil’s signature Tuna Blue spectrum, the AP9 features a full range of individually adjustable color channels (red, green, purple) that can be accessed via the Kessil app. Kessil Logic™ ensures that cosmetic color settings do not interfere with the core spectrum, allowing users to dial in a preferred color without disturbing coral health. The AP9 also includes 395nm LED chips, which emit True UVA light for maximum coral coloration.

PAR Efficient

PAR measures all visible light (400-700nm) unweightedly, but coral health primarily relies on the 425nm (violet) and 455nm (royal blue) wavelengths. Kessil LEDs focus on these essential wavelengths, prioritizing coral growth and propagation over inflated PAR readings.



Shimmer

The signature Kessil shimmer effect gives your tank a beautiful, natural, sunlit look comparable to the shimmer of a metal halide fixture – replicating your own piece of the ocean.



Perfect Colour Mixing

Our patented Dense Matrix Array allows us to pack 55 LED chips into a space smaller than a quarter. With 110 LED chips in two arrays, the AP9 has the best color mixing in the industry – no diffuser necessary and no disco-ball effect!



Penetration

55 LED chips in a single array create a powerful light source with wide coverage. Maximum penetration reaches up to 30″ beyond the water’s surface for most reefs. Penetration can be further enhanced by positioning units closer together.



Advanced Dimming

Mimic natural day/night cycles and lunar phases with smooth dimming down to 0.1%—from a gentle sunrise to the faintest moonlight.

—







—
Technical Specifications
Dimensions   : 41.8cm x 14.5cm x 3.6cm
Unit Weight   :1.04kg
Spectrum        :Tuna Blue + Red + Green + Purple (Violet+Indigo)
Coverage         :Up to 48” x 24” (122cm x 61cm)
Power Adapter:100-240V AC 50-60Hz (Input), 48V DC (Output)
Power Consumption AC : 185W Max
—

What’s in the Box
1x AP9X

1x Power Adapter

1x Adapter Cable

4x Metal Screw Hook & Hanging Bracket

3x QR Code Stickers
